Gallery

Hold your mouse over each image for a description

Click on an image for a higher resolution image in a new window

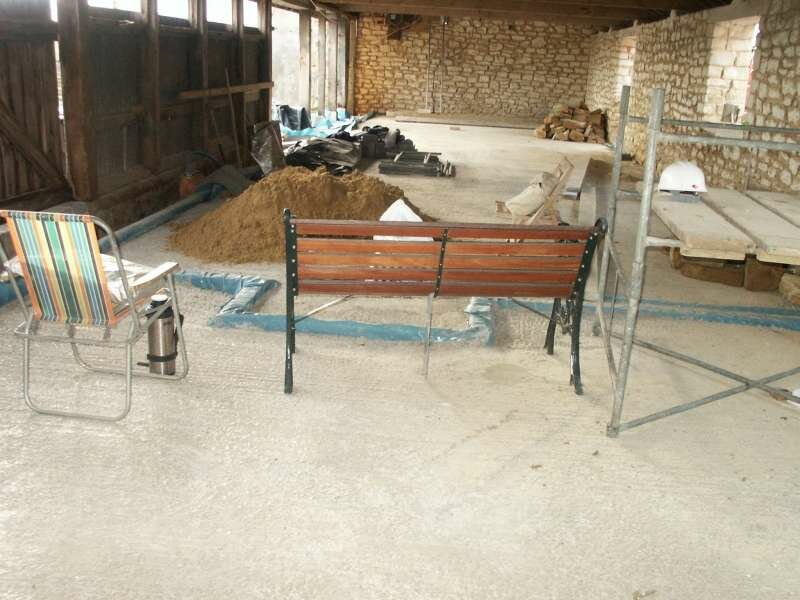

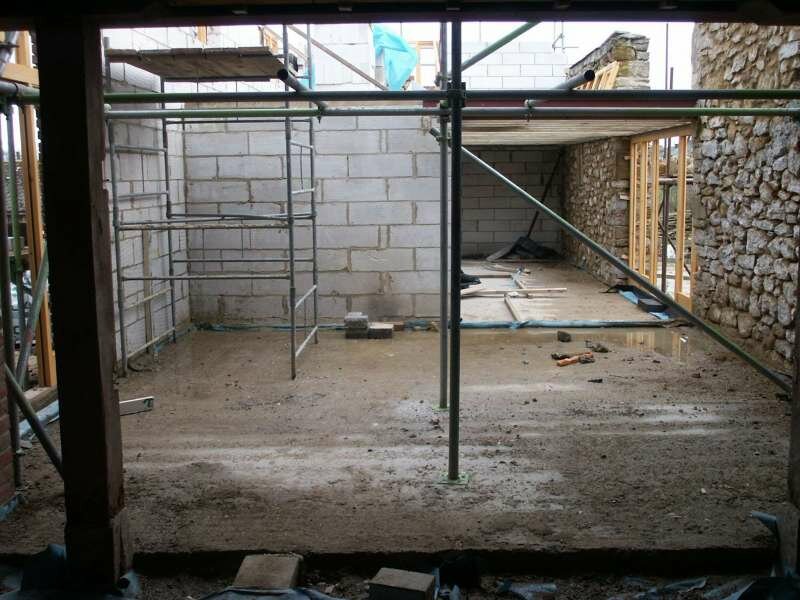

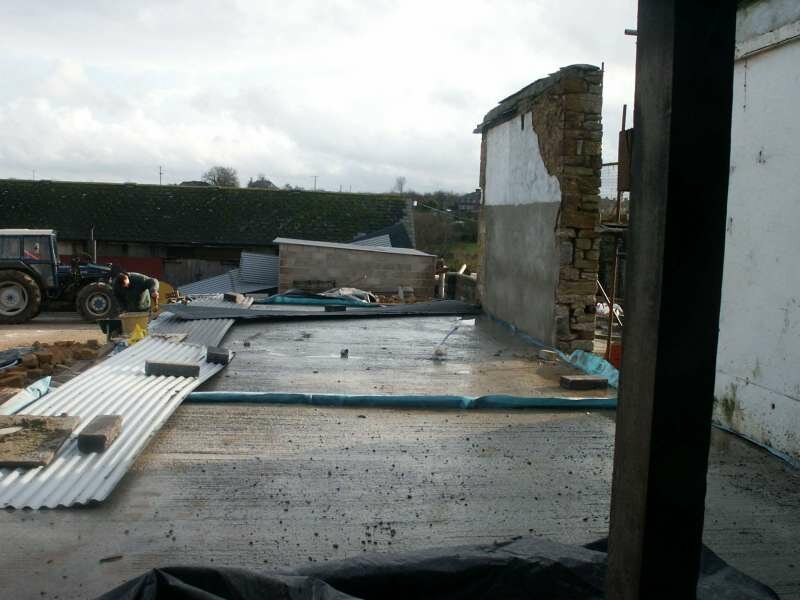

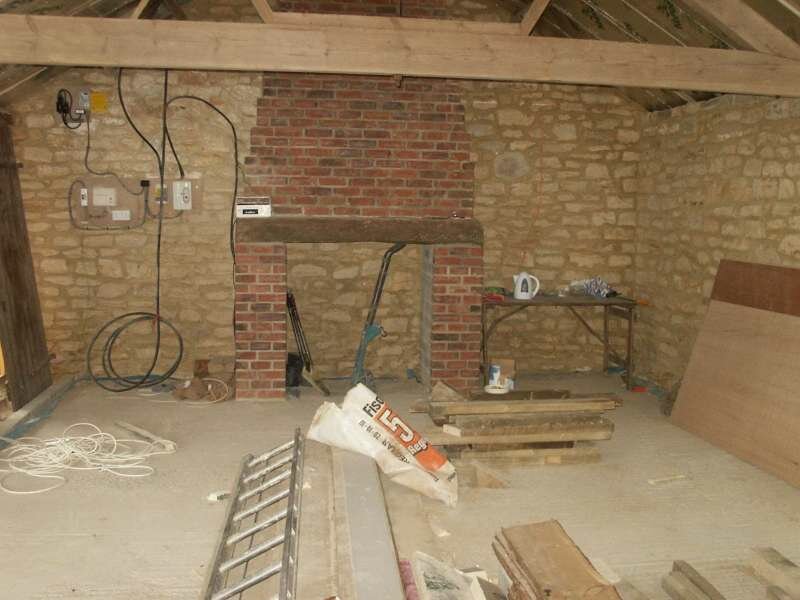

On site in the early stages of the conversion to advise The gallery being formed The gallery with underfloor heating installed An open plan lounge, very open at the moment

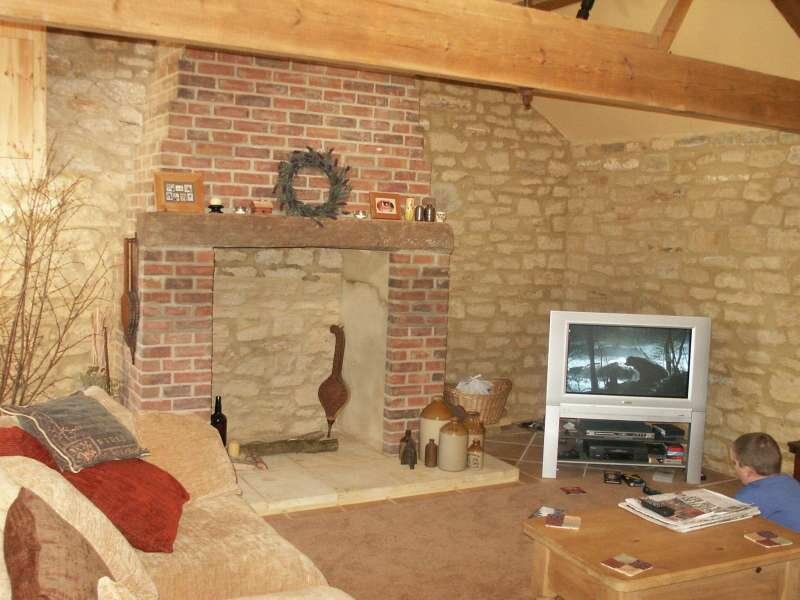

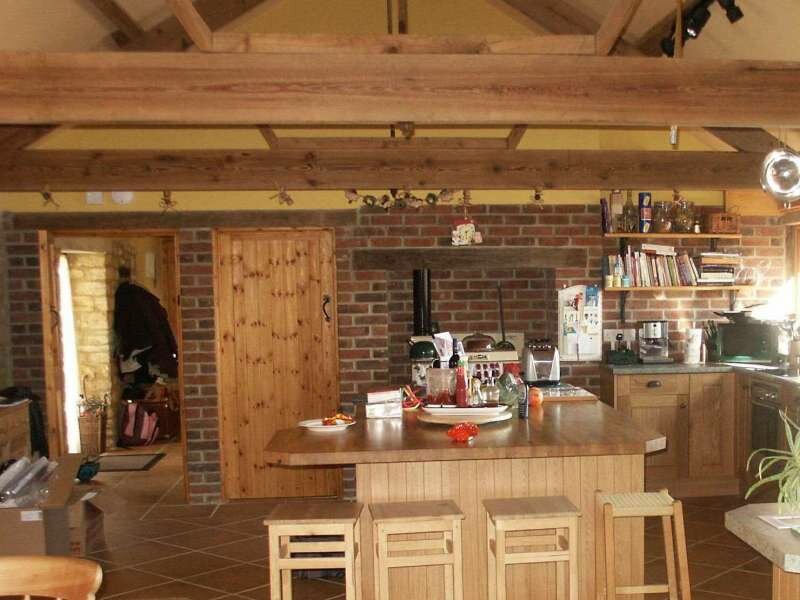

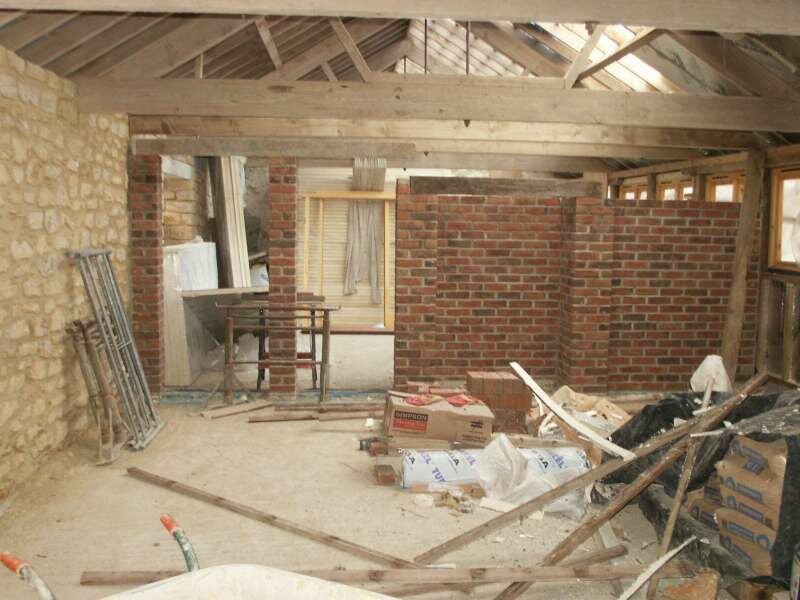

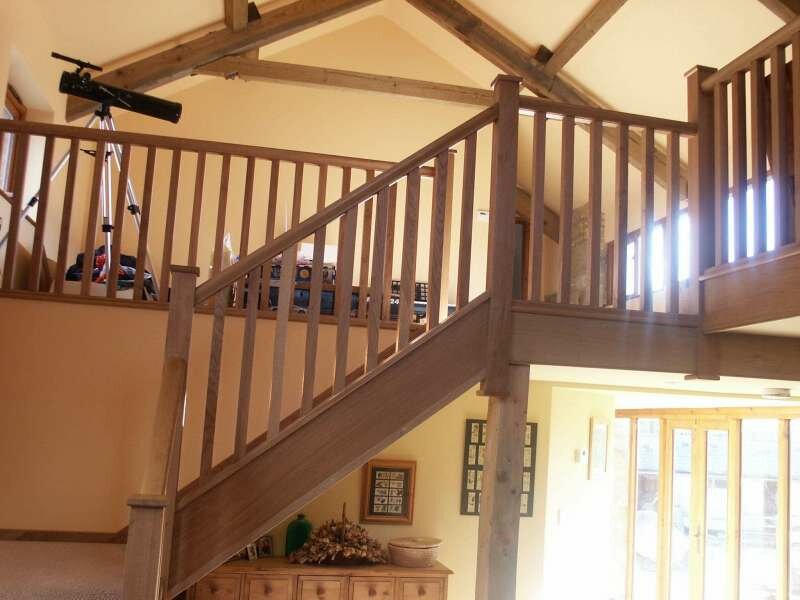

Stairway leading to the gallery Lounge during construction Completed lounge with underfloor heating beneath tiles Up go the walls

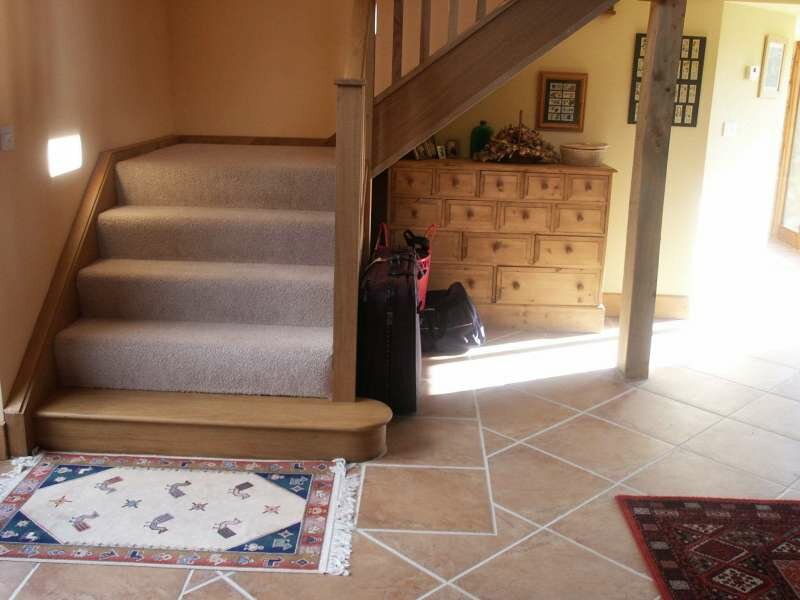

The finished room 500 gauge slip membrane vapour barrier over Celotex RRFL floor insulation board and edge insulation, conforming to BRE recommendations, laid prior to installation of underfloor heating loops Typical custom built heating manifold, housed within a walk-in wardrobe. Showing auto bypass to minimise boiler cycling, Grundfos UPE modulating pump incorporating energy conserving features ideally suited to underfloor heating First fix of manifold components showing flow and return pipework and PEX pipe-in-pipe plumbing from thermal store heated by solar panels

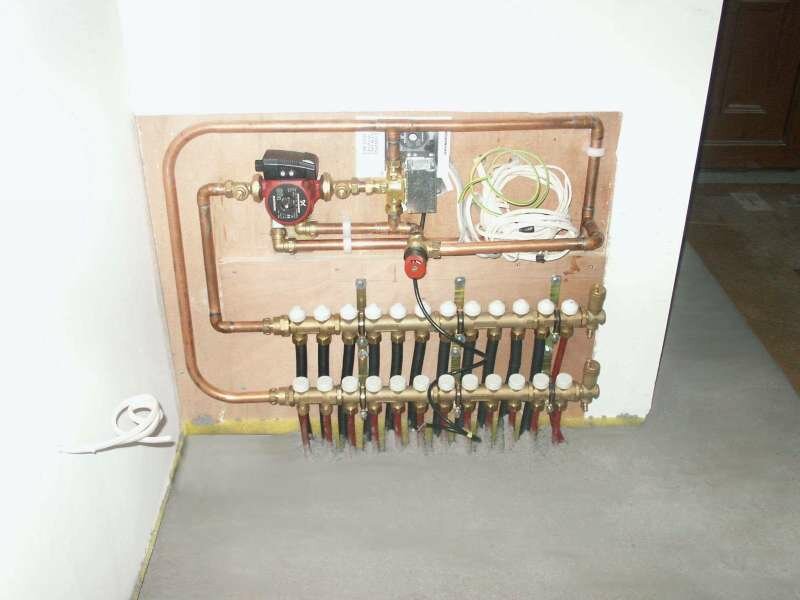

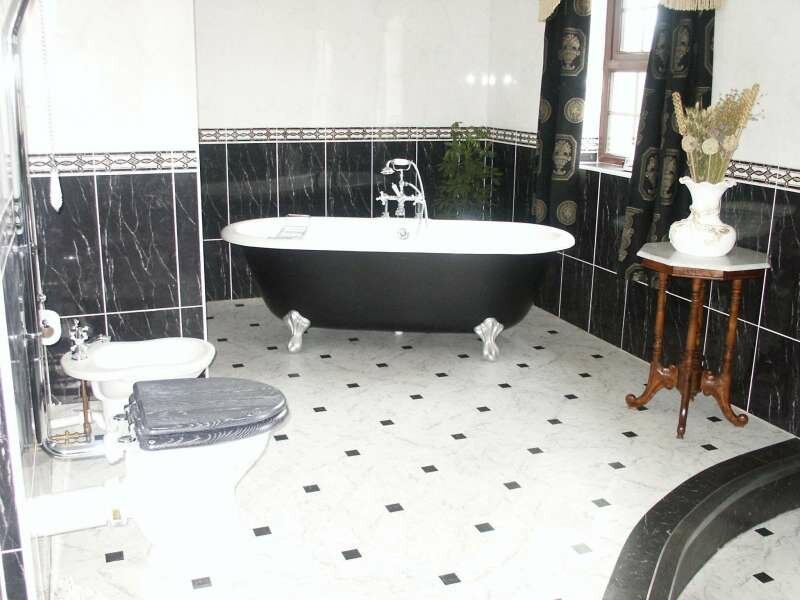

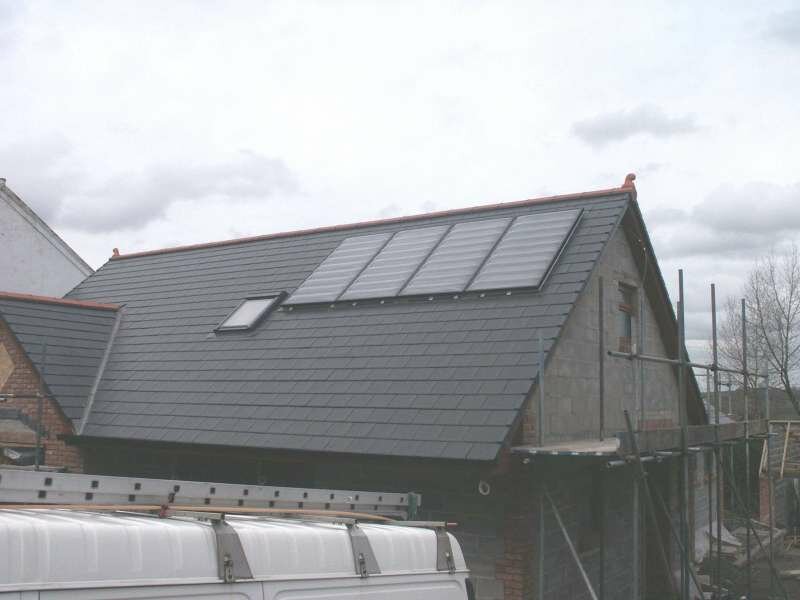

Second fix of underfloor heating manifold components Solar panel array providing heat source for UFH, suplemented by a boiler Split-level feature in bathroom, accommodating UFH on both levels Perfect design freedom with underfloor heating

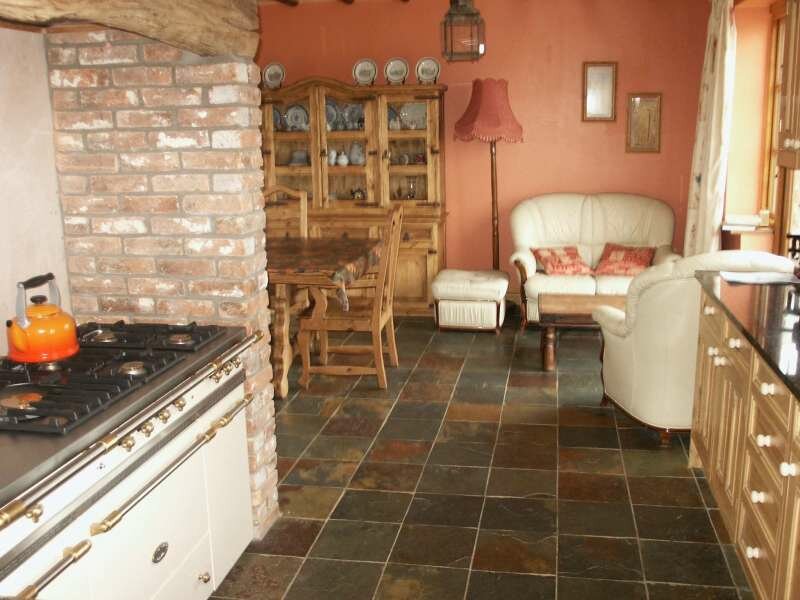

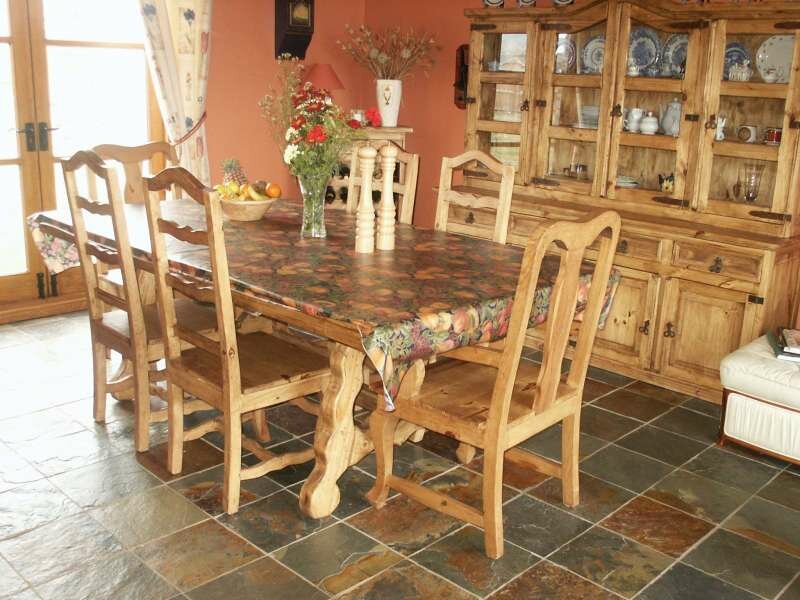

Perfect design freedom with UFH Underfloor heating under limestone flags Underfloor heating under quarry tiles Prestigious development of luxury detached 3 storey properties under construction. The property in the foreground is being prepared for the installation of underfloor heating on all levels. With beam and block on the ground floor and timber on the first and second floors. The heating in the background properties has been completed

Sample sections of alternative floor types

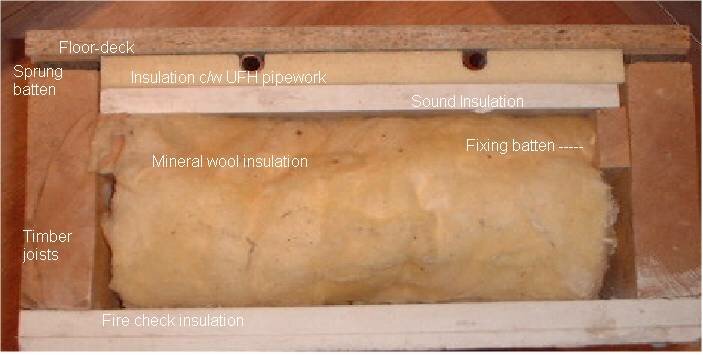

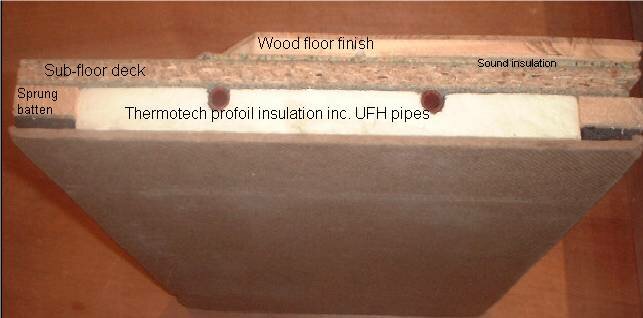

Typical installation of UFH under a floating floor construction Custom installation of accoustically insulated floor, incorporating a fire check, with underfloor heating. Prior to the implementation of Part E of building regs.
